TILTTRAYS TO SUIT 31,500kg GVM TRUCKS

/31500/31500/31500/31500/31500/31500/31500/31500/31500/31500/31500/31500
HIGHEST CAPACITY ON ROAD TILT TRAYS AVAILABLE
MORE CARE MUST BE TAKEN WITH WEIGHT DISTRIBUTION AS THE TRI-AXLE GROUP CAN TAKE WEIGHT OFF THE TWIN STEER GROUP
SUITABLE FOR COUNTER WEIGHTED LOADS SUCH AS ROLLERS AND EARTHMOVING MACHINERY
CARRYING CAPACITY (ON ROAD) OF UP TO 17 TONNES DEPENDING ON CAB CHASSIS

 STANDARD FEATURES   (INCLUDED IN THE PRICE)

     * 30,000 lb Archerfield Precision Engineering winch, with cable tensioner

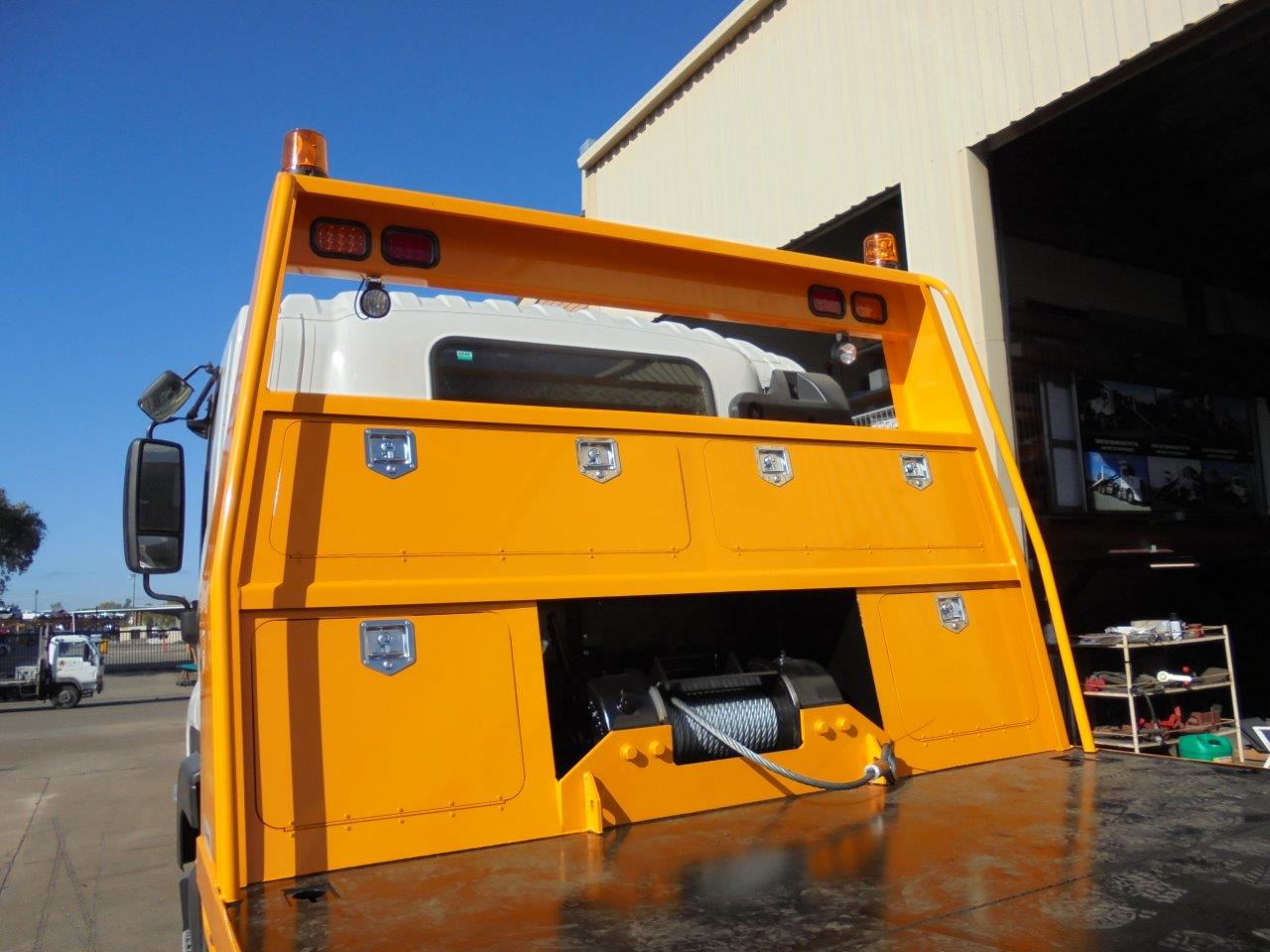

     * Full cab height pressed (3 mm) headboard with 2 large lockable
        (drop T handle) toolboxes
     * Rotating lights, 2 work lights, stop/tail/turn mounted at top of headboard.
        LED clearance lights
     * Heavy duty scissor between truck chassis and tilt tray sub-frame to minimize
        truck chassis flex
     * 6 mm Hardox (hi-tensile) floor with flush mounted container pins
     * 12 keyholes (tie down points in floor)
     * Tray painted white in 2 PACK (other colours available)
     * Up to 9.00m long (longer trays available)

OPTIONS

BODYWORK-

     * TSEB040 2nd car underlift with flipover cradle,overcentre valves on all
        hydraulic cylinders,HDPE on all sliding surfaces,provision for 50mm ball
     * TSEB050 Quicklash vehicle tie down system
     * TSEB030 Fold Down Tail Lights
     * TSEB070 Hayman Reece style towball socket over winch
     * TSEB080 6 inch(150mm) combings instead of 5 inch(125mm)
     * TSEB090 Winch Idler Pulley with 4 positions (large pin)
     * TSEB095 Container pins in slides (container only slides on its corners)
        and 6mm Hardox floor

ELECTRICAL-

     * TSEE10 1800mm wide lightbar with 4 spinners
     * TSEE020 L E D taillights

OVERSIZE-

     * TSE010 Drop in Oversize sign (rear only)
     * TSE020 Fold up/down (gas struts) Oversize sign mounted on top of headboard
     * TSE030 Pole mounted rear rotating light

RADIO REMOTE-

     * TSER 020 Teleradio  all tray function (does not include underlift)

TOWING-

     * TSET010 Fold away  towbar with 50mm ball/pintle hook
     * TSET0140 50mm Ringfeeder in 21 tonne member at rear of tilt frame
     * TSET150 127mm Bartlett Ball in 21 tonne member at rear of tilt frame
     * TSET060 24v to 12v voltage reducer
     * TSET070 Electric Trailer brakes
     * TSET080 Foot only Trailer brakes with air to rear

 TOOLBOX-

     * TSEB010 Chassis mounted toolbox
     * TSEB020 Chassis mounted toolbox with Stainless Steel door
     * TSEB030 25l watertank Chassis mounted
     * TSEB040 25l watertank with soap dispenser mounted on headboard
     * TSEB050 60l Chassis mounted water tank
     * TSEB060 Shelf in headboard (one side)
     * TSEB070 Chain Rail in headboard (one side)

WINCH-

     * TSEW050 Air dog clutch with switch mounted at the hydraulic controls

 This quote is for supply and fitment of the tilt tray body only for trucks with manual transmissions and does not include any modifications to the trucks air system, exhaust system, or chassis. 2 years unlimited kilometre warranty on all parts manufactured by South East Queensland Tilt Tray. Overloading or misuse may void warranty. All warranty work is done on our premises. All other parts (hydraulics, lights, etc.) warranted by their individual suppliers.

 This quote does not include interfacing the PTO or LED lights with any vehicle systems.
