STANDARD FEATURES (INCLUDED IN THE PRICE)

*12,000 lb Archerfield Precision Engineering winch with cable tensioner

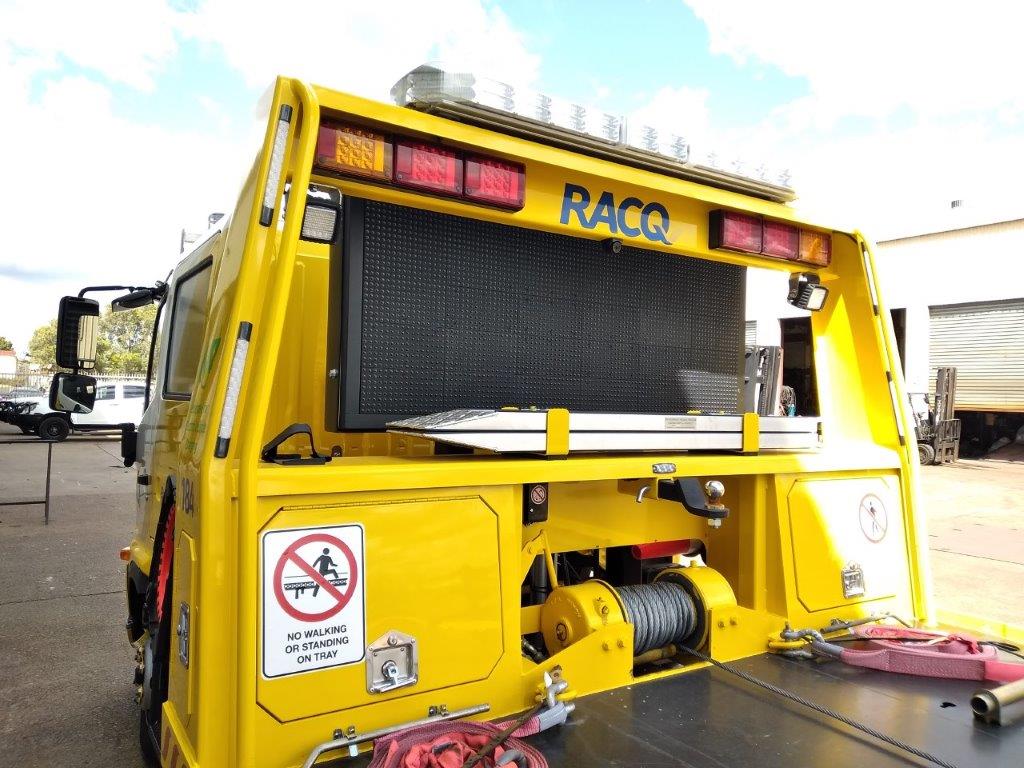

*Full cab height pressed headboard with 2 large lockable (drop T handles) toolboxes
*2 rotating lights, 2 work lights, stop/tail/turn mounted at top of headboard.
LED clearance lights
* 5 mm Hardox (hi-tensile) floor with flush mounted container pins
* Heavy duty scissor between truck chassis and tilt tray sub-frame to minimize
truck chassis flex
* 10 keyholes (tie down points) in floor
* Tray painted white in 2 PACK (other colours available)
*Up to 7.5m long

OPTIONS

BODYWORK-

* TSEB040 2nd car underlift with flipover cradle,overcentre valves on all hydraulic
cylinders,HDPE on all sliding surfaces, removeable Haymen Reece style tow coupling adaptor
* TSEB050 Quicklash vehicle tie down system
* TSEB030 Fold Down Tail Lights
* TSEB070 Hayman Reece style towball socket over winch
* TSEB090 Winch Idler Pulley with 4 positions (large pin)

ELECTRICAL-

* TSEE10 1800mm wide lightbar with 4 spinners
* TSEE020 L E D taillights

OVERSIZE-

* TSE010 Drop in Oversize sign (rear only)
* TSE020 Fold up/down (gas struts) Oversize sign mounted on top of headboard
* TSE030 Pole mounted rear rotating light

RADIO REMOTE-

* TSER 020 Teleradio all tray function (does not include underlift)

TOWING-

* TSET030 Slide in/out towbar with 50mm ball/pintle hook
* TSET090 Bartlett Ball at end of tilt frame
* TSET060 24v to 12v voltage reducer
* TSET070 Electric Trailer brakes
* TSET080 Foot only Trailer brakes with air to rear

TOOLBOX-

* TSEB010 Chassis mounted toolbox
* TSEB020 Chassis mounted toolbox with Stainless Steel door
* TSEB030 25l watertank Chassis mounted
* TSEB040 25l watertank with soap dispenser mounted on headboard
* TSEB050 60l Chassis mounted water tank
* TSEB060 Shelf in headboard (one side)
* TSEB070 Chain Rail in headboard (one side)

WINCH-

* TSEW050 Air dog clutch with switch mounted at the hydraulic controls

This quote is for supply and fitment of the tilt tray body only for trucks with manual transmissions and does not include any modifications to the trucks air system, exhaust system, or chassis. 2 years unlimited kilometre warranty on all parts manufactured by South East Queensland Tilt Tray. Overloading or misuse may void warranty. All warranty work is done on our premises. All other parts (hydraulics, lights, etc.) warranted by their individual suppliers.

Quote does not include any special wiring harness or associated hardware to interface the PTO or L E D lights with any truck or manufacturer`s vehicle systems.
This quote is for supply and fitment of the tilt tray body only for trucks with manual transmissions and does not include any modifications to the trucks air system, exhaust system, or chassis. 2 years unlimited kilometre warranty on all parts manufactured by South East Queensland Tilt Tray. Overloading or misuse may void warranty. All warranty work is done on our premises. All other parts (hydraulics, lights, etc.) warranted by their individual suppliers.
Quote does not include any special wiring harness or associated hardware to interface the PTO or L E D lights with any truck or manufacturers vehicle systems.
